MGLP-U8-10 - Magna-Lok Structural Fasteners - Stainless Steel
Prices
| Price Breaks Per Pack | 1 - 9 | 10 - 99 | 100+ |
|---|---|---|---|
| Price per 10 | $217.39 | $88.93 | $79.05 |
Select the quantity you require and place your order.
Technical Specification
| Description | MGLP-U8-10 |
|---|---|

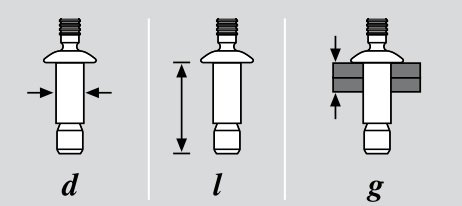

d (mm) |
6.4 |
l (mm) |
30.99 |
g (mm) |
8.89 - 15.88 |

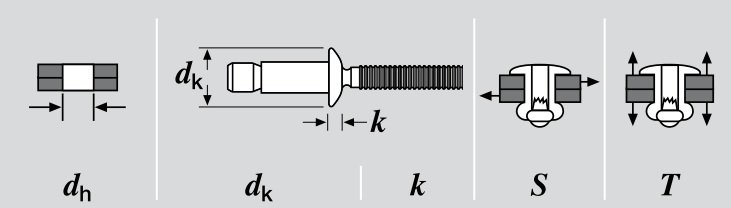

| dh (mm) |
6.63 - 6.91 |
| dk (mm) |
13.44 |
| k (mm) | 3.02 |
S (N) |
10453 |
T (N) |
8007 |
| Pin Retention (N) |
890 |
